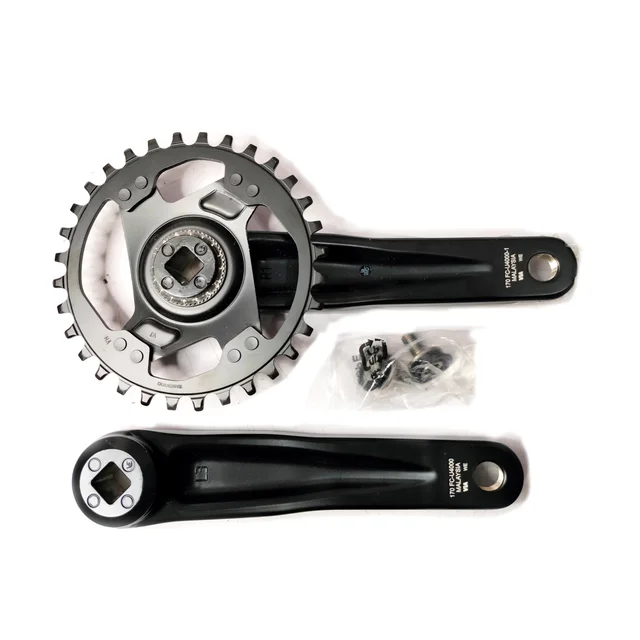

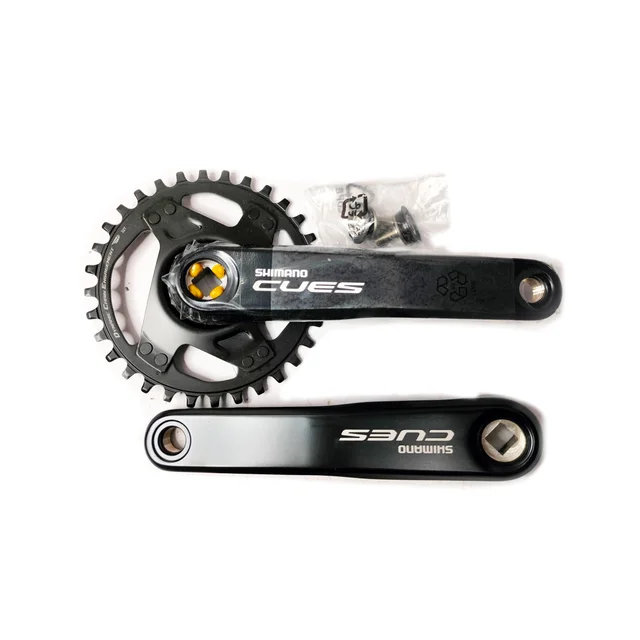

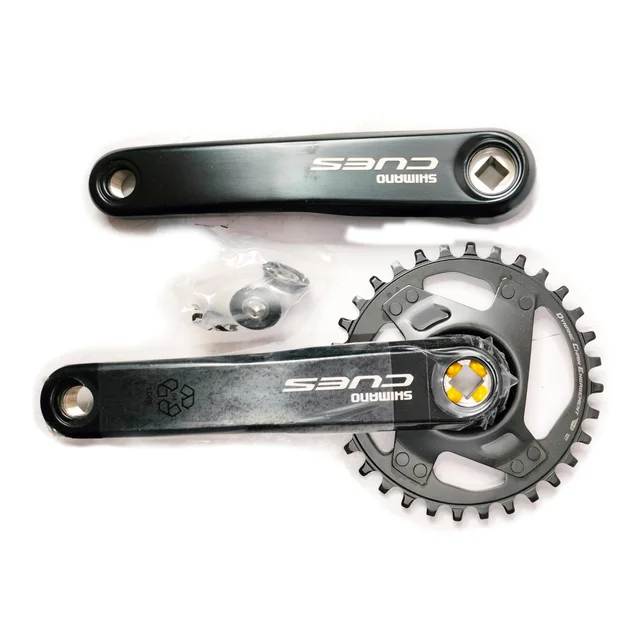

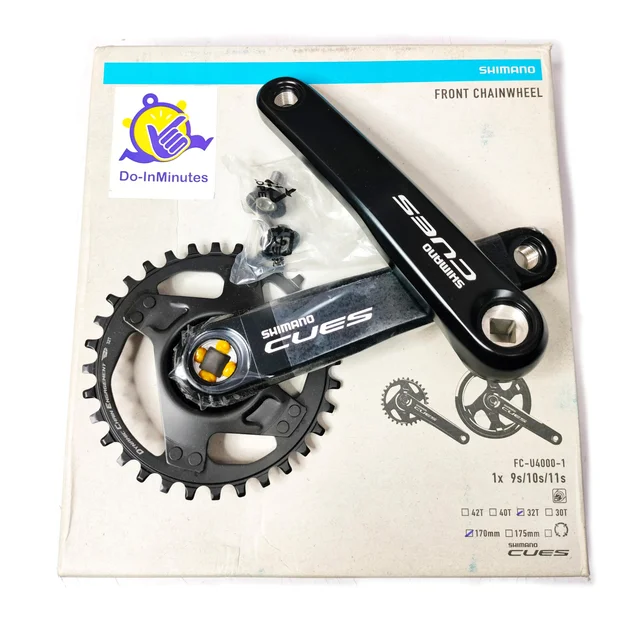

Shimano Cues FC-U4000-1 Square Taper Crankset (Black)

• We have 90% cash on delivery and 10% advance payment available for this product

Superior chain retention and power transfer for fun riding over the rough stuff

Grow your confidence riding hard over the rough stuff with this crankset’s wide-range gearing and seamless pedaling.

FEATURES

• Special gear tip shape improves chain engagement and retention for smooth riding over rough terrain
• DYNAMIC CHAIN ENGAGEMENT+

Only compatible with LINKGLIDE shifting system

• Description
• PRODUCT SPECIFICATIONS

Compatible chain	LINKGLIDE, HG 11-speed
Chain line (mm)	52 (30T, 32T), 50 (40T, 42T)
O.L.D.|Thru (mm)	148, 142 (30T, 32T), 142 (40T, 42T)
O.L.D.|QR/Nut (mm)	141, 135 (30T, 32T), 135 (40T, 42T)
P.C.D. (mm)	Riveted
Spider/Gear arms	4
Chainring combination	32T
Q-factor (mm)	178
Crank arm length (mm)|170
Crank arm length (mm)|175
Optional chain guard|With chain guard	X (40T, 42T)
Optional chain guard|Without chain/bash guard
Compatible bottom bracket type|Square
Recommended bottom bracket|Threaded (normal)	BB-UN101
Axle length of BB-UN/ES (mm)|Threaded (normal)	LL123
Threaded bottom bracket shell width (mm)|68
Threaded bottom bracket shell width (mm)|73
Chain case compatible	X (40T, 42T)
Stainless chain guard fixing screw
Crank fixing screw included
